Dark skies and wildlife friendly
This fitting is considered dark skies and wildlife friendly subject to a suitable LED (2700K, 2200K, or 1800K) and ensuring no upward spill.

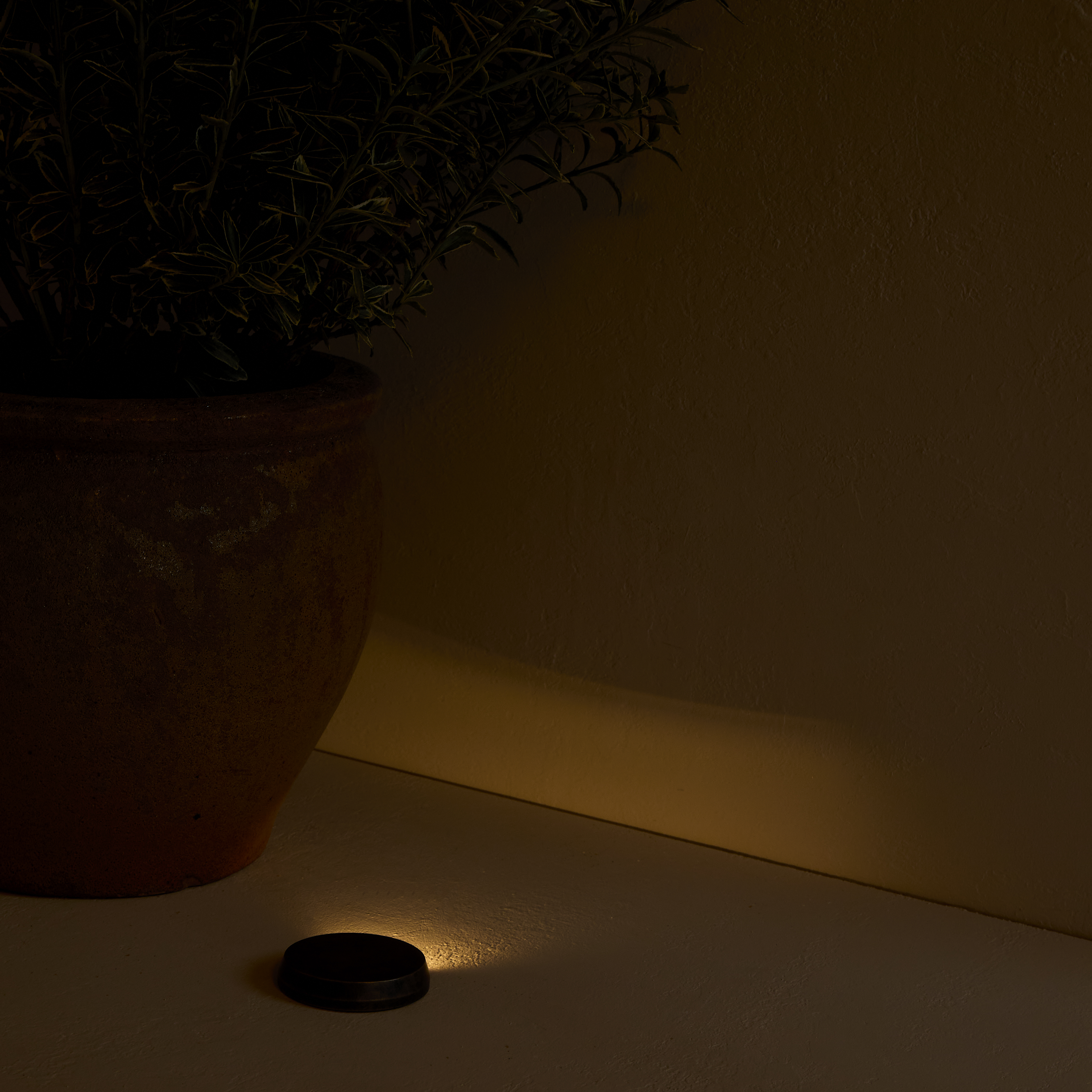

Please note, it is a marker light. Should you wish to achieve a very bright triangle of light we highly recommend selecting the super bright directional LED in the options
Product Features:
- Submersible - can be installed under water if desired.
- User-replaceable LED, no need to throw the whole fitting away unlike other fittings.
- 10-year guarantee for peace of mind.
- Pre-flexed with the cable length of your choice below (0.2-99m) for easy installation.
- Dimmable for customized lighting and compatible with Lutron, Crestron, Control4, Rako and all other lighting control systems subject to driver selection.
- All components are replaceable for longevity beyond the warranty period for a period of 25 years.
- Extra low voltage - touch safe for children and pets alike.
Technical basics (refer to specification sheet for more details):
- IP rating: IP68 - fully dust tight and permenantly submersible under water
- Electrical supply: 350mA constant current driver wired in series only. Maximum driver wattage 42W (This equates to 120VDC which is the limit of extra low voltage).
- Cut out size: 25mm (larger cutout can be specially made on request) - compatible with most of our other recessed fittings if you change your mind on the style
- Smart features: Reverse or normal polarity produces the same output
- Cut outs: Standard is 60-degree single opening. Any other configurations available on request. Note that the directional LED option can only be used with a single slot.
- Manufacturing: CNC machined, Finishing, Anodising, Powder coating, and assembly all in our own facility in Coulsdon, Surrey, UK
Specification Sheet
Image Pack
SketchUp Model
IES File — 3.6WTM66 Circular Economy Assessment
| Category | Points Scored | Max Points | Assessment |
|---|---|---|---|
| Product Design | 97.0 | 134.0 | 2.9 |
| Manufacturing | 27.0 | 46.5 | 2.3 |
| Materials | 10.0 | 24.0 | 1.7 |
| Ecosystem | 36.0 | 43.0 | 3.3 |
| Overall | 170.0 | 247.5 | 2.6 |
| Score Range Key | |
|---|---|
| 0 to 0.5 | Very poor circular economy performance |
| 0.5 to 1.5 | Some circular economy functionality |
| 1.5 to 2.5 | Definite/substantial progress to circularity |
| 2.5 to 4.0 | Excellent circularity |

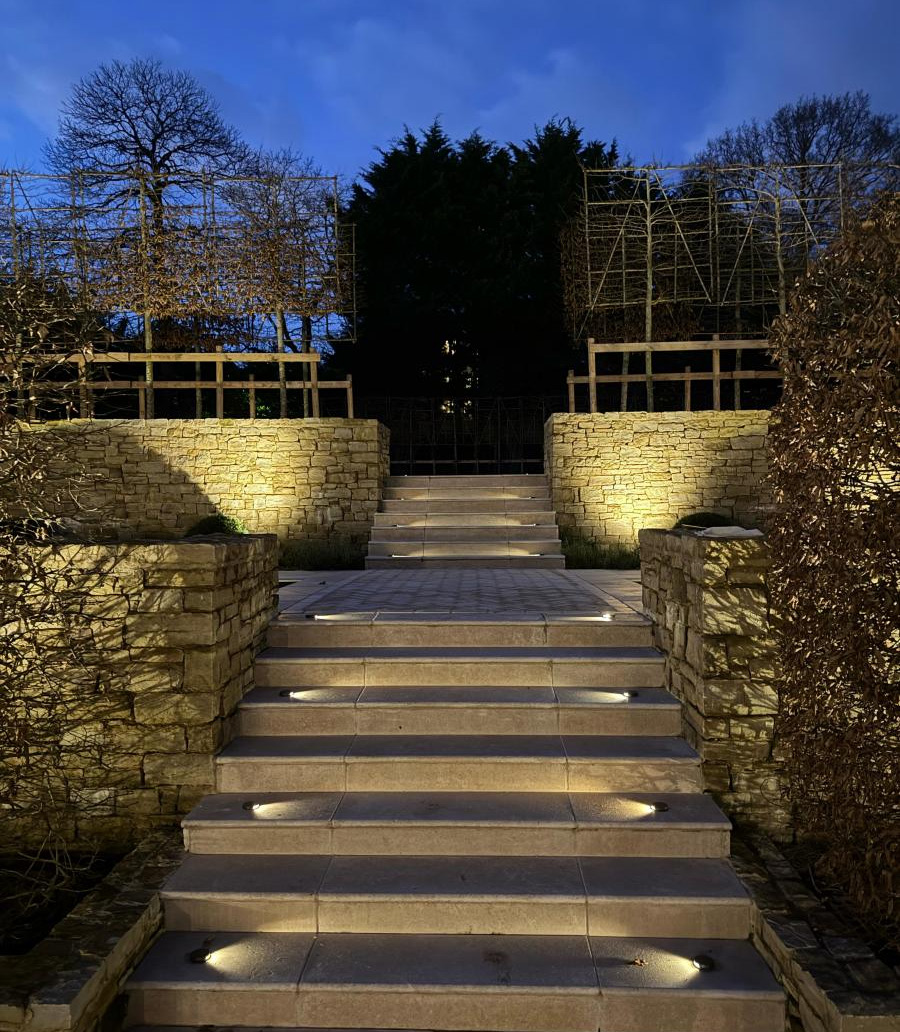

Customer Photos
Explore in 3D
Turn the light around, zoom in and compare finishes.
Loading 3D preview...
Finish appearance is approximate and varies with your screen and lighting. Previewing a finish does not change your order selection.
Model downloads
- Black (GLB, 0.9 MB)

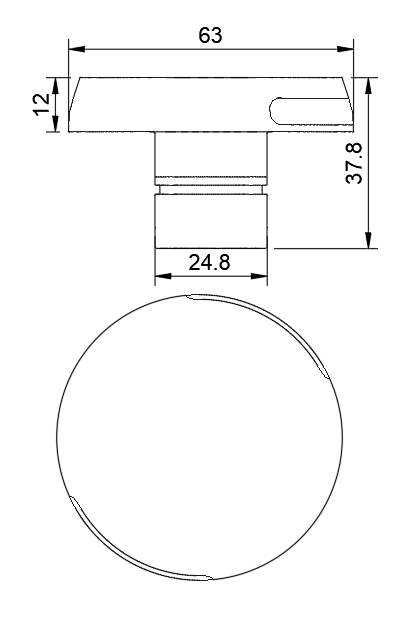

63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- NATO Green (GLB, 0.9 MB)
63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- CorTen (GLB, 0.9 MB)
63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- Terra Brown (GLB, 0.9 MB)
63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- Brass patinated (GLB, 2.3 MB)
63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- Solid Copper (GLB, 0.8 MB)
63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- Solid Bronze (GLB, 0.8 MB)
63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- Plain Brass (GLB, 0.8 MB)
63 mm top diameter, 37.8 mm depth. Finish appearance approximate.
- GLB and Blender source pack (ZIP, 13.7 MB)
UK/Ireland finishes. Includes import instructions.
- SketchUp COLLADA (ZIP, 6.7 MB)
UK/Ireland finishes. Includes import instructions.
- OBJ and FBX design models (ZIP, 13.4 MB)
UK/Ireland finishes. Includes import instructions.
- DIALux and Relux geometry (ZIP, 6.6 MB)
UK/Ireland finishes. Geometry only; no IES/LDT photometry.
- USDZ rendering models (ZIP, 7.0 MB)
UK/Ireland finishes. Includes import instructions.
- Affinity 2D silhouettes (ZIP, 0.0 MB)
Front, side and plan SVGs in millimetres.
GLB models include their materials and use metres. Check the latest product specifications before installation.
Professional Resources
Technical documentation for architects and specifiers.
Download Full Pack![[Non Dimmable] 0.5-20W 350mA Driver](/part_images/1.jpg)
